RESTful API

C2M provides a RESTful API for automated analysis data retrieval.

Two steps are required to use the API:

Enable the API in the C2M configuration file
Generate an API access token in the C2M settings UI

Enable the API

Make sure that appsettings.json contains the following section:

{
  "RestApiSettings": {
    "Enabled": true
  }
}

The API is enabled by default in the provided configuration file.

Generate an API Access Token

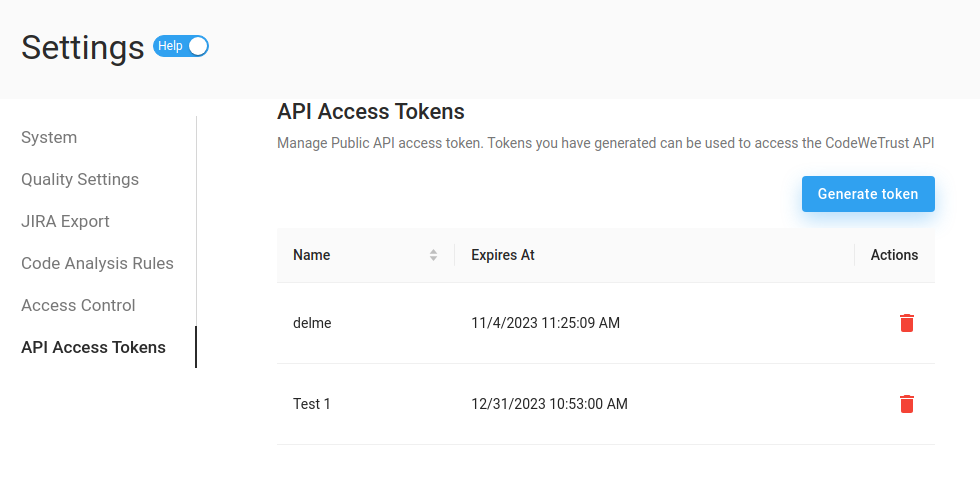

To generate an API access token, open the C2M settings UI and navigate to the API Access Tokens section:

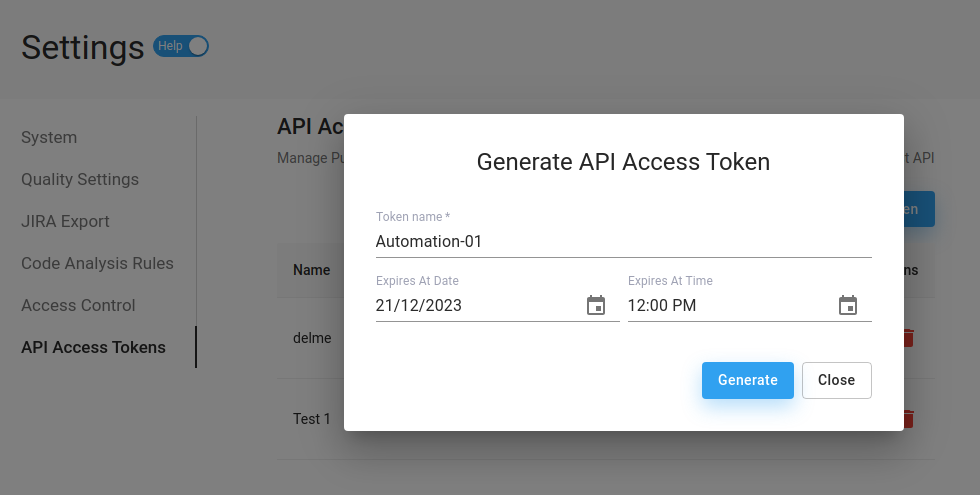

Click the Generate token button to generate a new token, set the name and expiration date:

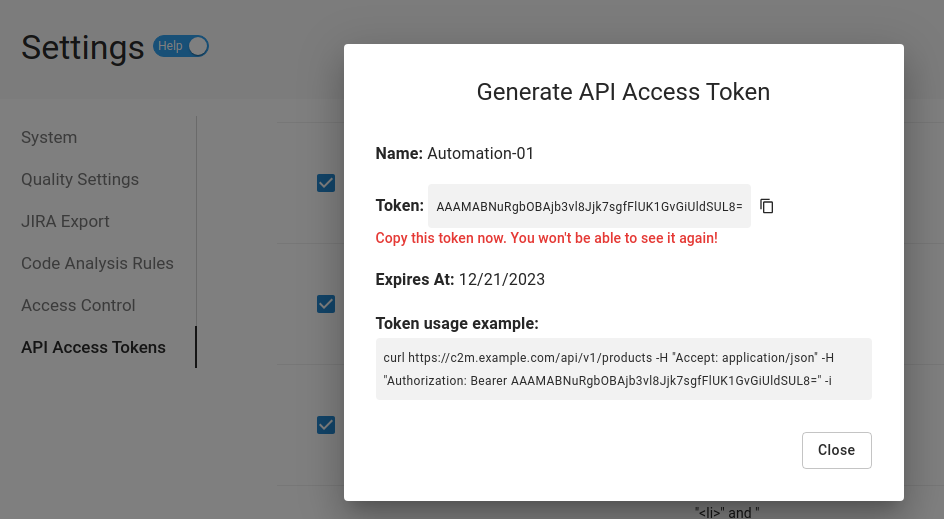

Click the Generate button. The token will be displayed in the UI:

Copy the token and store it in a safe place.

The token will not be displayed again (it is stored in the database in a hashed form)
The token can be revoked at any time by clicking the Revoke button
The token grants access only to the current C2M instance

Using the API

See the OpenAPI Specification for all available endpoints. You can load this spec into a tool like Postman or editor.swagger.io to explore the API.

In the following examples, we'll use the curl command line tool to perform basic operations on the API.

The examples uses a dedicated API test server at https://api-test.codewetrust-api.com/. You can ran the commands as is. The provided token is valid only for this server: AAAI/ORYqAbVQgjb4cZslBdgVmJl6YyBEI81XxsXneg=
Tip: use the -i option to display the HTTP response headers
Tip: use jq to format the JSON responses by appending | jq to the commands below

Status

Status API does not require the token.

curl https://api-test.codewetrust-api.com/api/v1/status

Sample response:

{
  "status": "OK",
  "app": "CodeWeTrust API",
  "date": "2023-11-10T16:50:45.0129583Z",
  "version": "6.5.0.1+16f303e04d",
  "scannerQueueSize": 0
}

Get Products

curl 'https://api-test.codewetrust-api.com/api/v1/products' \
-H 'Authorization: Bearer AAAI/ORYqAbVQgjb4cZslBdgVmJl6YyBEI81XxsXneg='

Sample response:

[
  {
    "id": "P-000c0000-6e13-0646-a6a2-08dbcc7d9bce",
    "title": "Dapper",
    "repositoriesCount": 1,
    "linesOfCode": 21160,
    "languages": [
      "C#",
      "PowerShell",
      "DOS Batch",
      "Markdown",
      "Text"
    ],
    "scans": [
      {
        "id": "000c0000-6e13-0646-53ce-08dbcc7d9bd1",
        "date": "2023-10-14T06:23:33.2163968Z"
      }
    ]
  }
]

Note the scans property. The same product can be scanned multiple times. The id property of the scan will be used to retrieve the scan results in the examples below.

Get Scan Results

The following commands will download various reports using the scan id:

Engineering Report

curl 'https://api-test.codewetrust-api.com/api/v1/reports/engineering/000c0000-6e13-0646-53ce-08dbcc7d9bd1' \
--output engineering-report.pptx \
-H 'Authorization: Bearer AAAI/ORYqAbVQgjb4cZslBdgVmJl6YyBEI81XxsXneg='

Executive Report

curl 'https://api-test.codewetrust-api.com/api/v1/reports/executive/000c0000-6e13-0646-53ce-08dbcc7d9bd1' \
--output executive-report.pptx \
-H 'Authorization: Bearer AAAI/ORYqAbVQgjb4cZslBdgVmJl6YyBEI81XxsXneg='

SBOM (Software Bill of Materials)

curl 'https://api-test.codewetrust-api.com/api/v1/reports/sbom/000c0000-6e13-0646-53ce-08dbcc7d9bd1?format=json' \
--output sbom-report.json \
-H 'Authorization: Bearer AAAI/ORYqAbVQgjb4cZslBdgVmJl6YyBEI81XxsXneg='

API Tester Example App (Python)

The public-api-tester repository contains an example Python console application that demonstrates how to use the C2M REST API. See README for details.
